Printing patterns in Java - Simple to Advanced + some Trick
Emmanuel Yegon
March 4, 2025
3 min read
Table of Contents
In order to enhance your logical skills and the idea of loops, you ought to explore pattern printing in java. From simple to advanced patterns, all have their logically defined ways.
A trick behind pattern printing
Before we venture into printing several patterns in java, let us first explore one trick in developing the logic for a certain pattern.

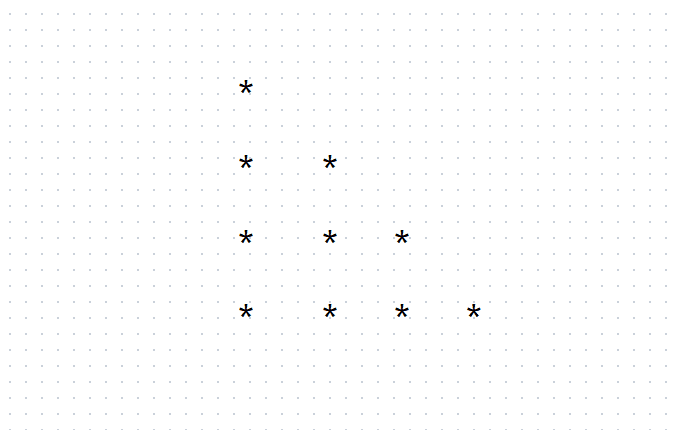

Let's say you have been given this kind of a pattern, and told to provide its logic in java.
The pattern is a simple right-angled triangle. Now, let's see how we can derive the logic step-wise:
Step 1:

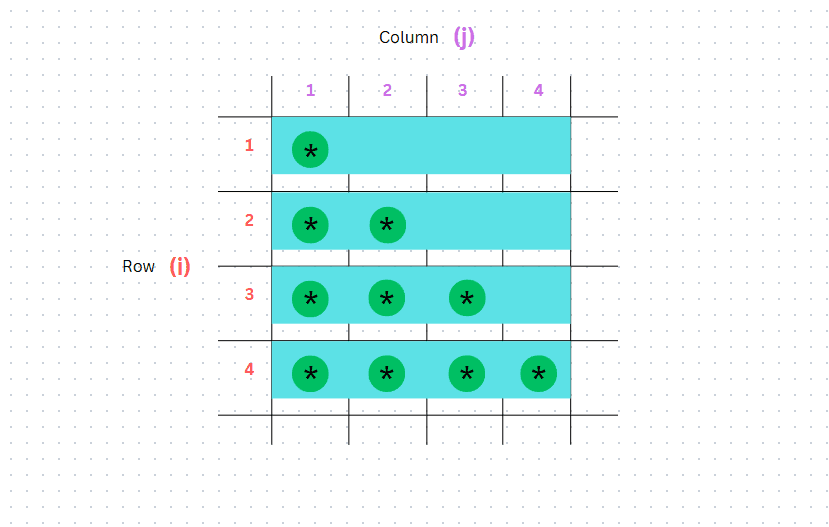

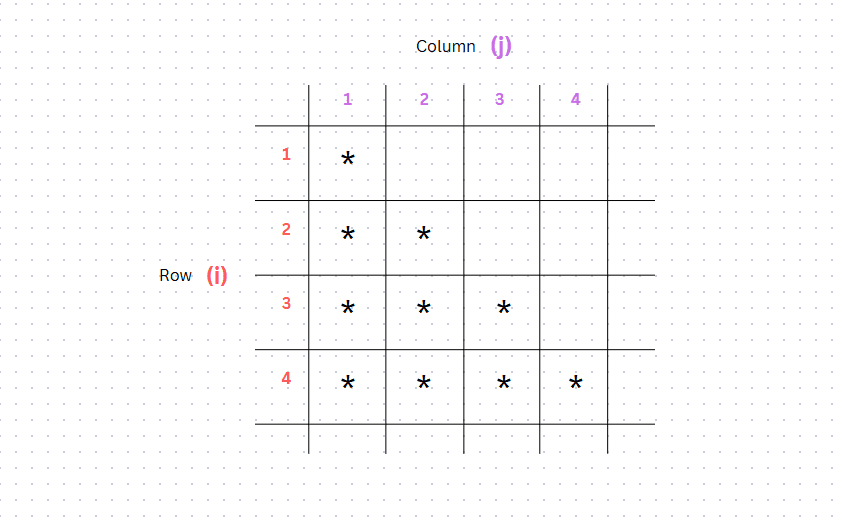

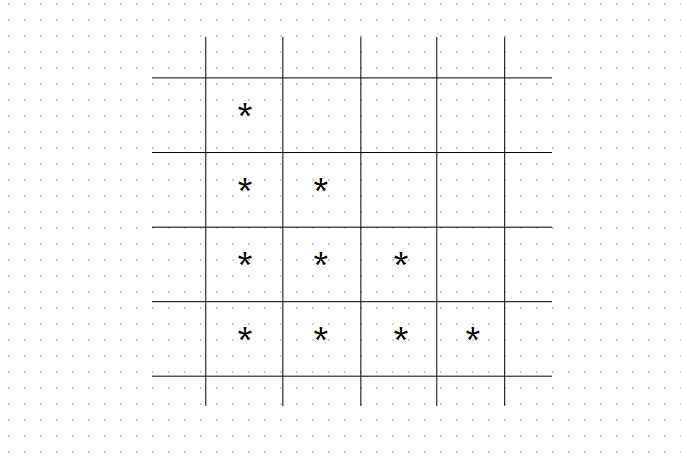

Draw horizontal and vertical lines to get a grid-like box layout as shown:
Now we have 4 rows and columns, each row and column at a certain index i and j respectively.
Step 2:

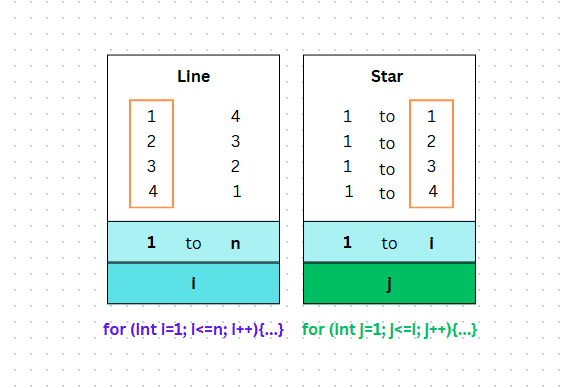

- Assume we have a variable named n, which is the required number of rows, e.g. n=4
- Let us represent the Line(row), with blue and the Star with green.
- The Line can be represented in either increasing(1,2,3,4,5) or decreasing order(5,4,3,2,1)
- Closely monitoring the pattern, you can notice that the first Line prints 1 star, second is 2 stars, third is 3 stars, and so on. We have made the green area have this kind of configuration: 1 to 1, 1 to 2 and so on. e.g. 1 to 2 means 2 stars will be printed at the second row and so on.
- You can simply match the similar patterns, as highlighted in orange.
- We have variable i for the outer loop and j for the inner loop. Variable i should be less than or equal to n(number of rows) while j should be less than or equal to i.
- We use a for loop for this case. Variable i has its for loop implemented in this way: for (int i=1; i<=n; i++){...} while for j, for (int j=1; j<=i; j++){...} .
Writing the code will be much easier since we have the complete logic. Finally, let's write the code in Java to match the pattern's logic.
public class rightAngledTriangle{
// main method
public static void main(String[] args){
// initialize no. of rows/lines
int n = 4;
// outer loop for the change in row/line
for (int i = 1; i <= n; i++){
// inner loop for printing the stars
for (int j = 1; j <= i; j++){
// print the stars without change in line
System.out.print("*");
}
// change the row/line
System.out.println();
}
}
}Output:
*
* *
* * *
* * * *
* * * * *
With that in mind, we can start writing code for different types of patterns all the way from the simplest to more advanced. There are several tricks for each pattern and you can take your time to research and explore.
Let us start with the simple patterns:
Square pattern
public class Patterns{
public static void main(String[] args){
int n = 8;
for(int i = 1; i <= n; i++){
for(int j = 1; j <= n; j++){
System.out.print("* ");
}
System.out.println();
}
}
}Output:
* * * * * * * *
* * * * * * * *
* * * * * * * *
* * * * * * * *
* * * * * * * *
* * * * * * * *
* * * * * * * *
* * * * * * * *
Triangle pattern
public class Patterns{
public static void main(String[] args){
int n = 8;
// outer loop handles rows
for (int i = 0; i < n; i++) {
// inner loop to print spaces.
for (int j = n - i; j > 1; j--) {
System.out.print(" ");
}
// inner loop to print stars.
for (int j = 0; j <= i; j++) {
System.out.print("* ");
}
// printing new line for each row
System.out.println();
}
}
}Output:
*
* *
* * *
* * * *
* * * * *
* * * * * *
* * * * * * *
* * * * * * * *
Right half pyramid
public class Patterns{
public static void main(String[] args){
int n = 8;
// outer loop to handle rows
for (int i = 1; i <= n; i++) {
// inner loop to handle columns
for (int j = 1; j <= i; j++) {
System.out.print("*");
}
// print new line for each row
System.out.println();
}
}
}Output:
*
**
***
****
*****
******
*******
********
Reverse right half pyramid
public class Patterns{
public static void main(String[] args){
int n = 8;
// outer loop to handle rows
for (int i = n; i >= 1; i--) {
// inner loop to handle columns
for (int j = 1; j <= i; j++) {
System.out.print("*");
}
// print new line for each row
System.out.println();
}
}
}Output:
********
*******
******
*****
****
***
**
*
Left half pyramid pattern
public class Patterns{
public static void main(String[] args){
int n = 8;
// outer loop to handle rows
for (int i = n; i >= 1; i--) {
// inner loop to print spaces.
for (int j = 1; j < i; j++) {
System.out.print(" ");
}
// inner loop to print stars.
for (int j = 0; j <= n - i; j++) {
System.out.print("*");
}
// print new line for each row
System.out.println();
}
}
}Output:
*
**
***
****
*****
******
*******
********
Reverse left half pyramid pattern
public class Patterns{
public static void main(String[] args){
int n = 8;
// calculating number of spaces
int space = 2 * n - 2;
// outer loop to handle rows
for (int i = n; i > 0; i--) {
// inner loop to print spaces.
for (int j = 0; j < n - i; j++) {
System.out.print(" ");
}
// Decrement value of num after each loop
space -= 2;
// inner loop to print stars.
for (int j = 0; j < i; j++) {
System.out.print("*");
}
// print new line for each row
System.out.println();
}
}
}Output:
********
*******
******
*****
****
***
**
*
Hollow triangle pattern
public class Patterns{
public static void main(String[] args){
int n = 8;
// outer loop to handle rows
for (int i = 1; i <= n; i++) {
// inner loop to print spaces.
for (int j = i; j < n; j++) {
System.out.print(" ");
}
for (int k = 1; k <= (2 * i - 1); k++) {
// print stars.
if (k == 1 || i == n || k == (2 * i - 1)) {
System.out.print("*");
}
// print spaces
else {
System.out.print(" ");
}
}
System.out.println("");
}
}
}Output:
*
* *
* *
* *
* *
* *
* *
***************
Hollow reverse triangle pattern
public class Patterns{
public static void main(String[] args){
int n = 8;
// outer loop to handle rows
for (int i = n; i >= 1; i--) {
// inner loop to print spaces.
for (int j = i; j < n; j++) {
System.out.print(" ");
}
for (int k = 1; k <= (2 * i - 1); k++) {
// print stars.
if (k == 1 || i == n || k == (2 * i - 1)) {
System.out.print("*");
}
// print spaces.
else {
System.out.print(" ");
}
}
System.out.println("");
}
}
}Output:
***************
* *
* *
* *
* *
* *
* *
*
K pattern
public class Patterns{
public static void main(String[] args){
int n = 8;
// upper triangle
// outer loop to handle rows
for (int i = n; i >= 1; i--) {
// inner loop to handle columns
for (int j = 1; j <= i; j++) {
System.out.print("*");
}
// printing new line for each row
System.out.println();
}
// lower triangle
// outer loop to handle rows
for (int i = 2; i <= n; i++) {
// inner loop to handle columns
for (int j = 1; j <= i; j++) {
System.out.print("*");
}
// printing new line for each row
System.out.println();
}
}
}Output:
********
*******
******
*****
****
***
**
*
**
***
****
*****
******
*******
********
More patterns coming up! ✌️
